Type MP-GC Three-Conductor Mine Power Feeder Cable, CPE Jacket, 15kV to ICEA S-75-381
 |
| Quantity: | |
|---|---|
Type MP-GC Three-Conductor Mine Power Feeder Cable, CPE Jacket, 15kV to ICEA S-75-381
| Applications | These cables are designed for connections between units of mine distribution systems, suitable forinstalled in duct, conduit or open air and for direct burial in wet and dry locations. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B-8 CAN/CSA-C22.2 No.96 |

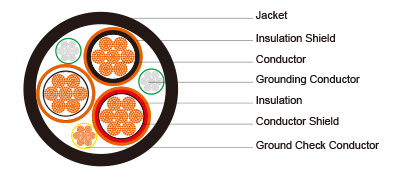

| Construction | |
| Conductors | Stranded annealed bare copper conductor. |
| Conductor Shield | Conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Conducting layer + copper tape. |
| Ground Check Conductor | Copper conductor with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Chlorinated Polyethylene(CPE), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 12×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor SizeL | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | ||||
No. of cores×AWG/kcmil | - | AWG/kcmil | AWG/KCMI | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
3×2 | 7 | 6 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 1.90 | 48.3 | 2517 | 3745 | 164 |
3×1 | 19 | 5 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 1.99 | 50.6 | 3023 | 4498 | 187 |
3×1/0 | 19 | 4 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 2.07 | 52.6 | 3296 | 4904 | 215 |
3×2/0 | 19 | 3 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 2.16 | 54.9 | 3679 | 5474 | 246 |
3×3/0 | 19 | 2 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 2.27 | 57.7 | 3878 | 5771 | 283 |
3×4/0 | 19 | 1 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 2.39 | 60.7 | 5146 | 7656 | 325 |
3×250 | 37 | 1/0 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 2.48 | 63.0 | 5618 | 8359 | 359 |
3×350 | 37 | 2/0 | 8 | 0.175 | 4.4 | 0.14 | 3.6 | 2.70 | 68.6 | 7055 | 10496 | 438 |
3×500 | 37 | 4/0 | 8 | 0.175 | 4.4 | 0.17 | 4.3 | 3.08 | 78.2 | 9405 | 13993 | 536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
