(N)TSCGEWOEU Medium-Voltage Reeling Cable With Fiber Optics VDE 0250 Part 813
 |
| Quantity: | |
|---|---|
(N)TSCGEWOEU Medium-Voltage Reeling Cable With Fiber Optics VDE 0250 Part 813
| Applications | These cables are used for connection of large mobile equipment such asexcavators and spreaders, gantrycranes, etc., under very highmechanical loads,suitablefor motorised reeling on monospiralor level-wind reelers. |
| Standards | Based on VDE 0250 Part 813 |

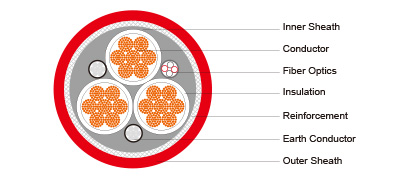

| Construction | |
| Conductors | Flexible strandedcopper conductor, class 5 according to DIN VDE 0295. |
| Inner Conductor Layer | Semiconductive layer. |
| Insulation | EPR type 3GI3. |
| Outer Conductor Layer | Semiconductive layer. |
| Earth Conductor | Split into two in the outer interstices. |
| InnerSheath | Rubber type GM1b/5GM3. |
| Reinforcement | Polyester anti-torsion braid. |
| Outer Sheath | Rubber type 5GM3/5GM5, flame retardant and oil resistant. |
Dimensions and Weight
3.6/6 kV
Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
No.×mm² | mm | mm | kg/km |
3×25+2×25/2+12×LWL | 39 | 42 | 2410 |
3×35+2×25/2+12×LWL | 42 | 45 | 2995 |
3×50+2×25/2+12×LWL | 45 | 48 | 3645 |
3×70+2×35/2+12×LWL | 50 | 54 | 4760 |
3×95+2×50/2+12×LWL | 54 | 58 | 5580 |
3×120+2×70/2+12×LWL | 58 | 62 | 6690 |
3×150+2×70/2+12×LWL | 63 | 67 | 7990 |
3×185+2×95/2+12×LWL | 67 | 72 | 9330 |
6/10 kV
Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
No.×mm² | mm | mm | kg/km |
3×25+2×25/2+12×LWL | 40 | 43 | 2450 |
3×35+2×25/2+12×LWL | 43 | 46 | 3035 |
3×50+2×25/2+12×LWL | 46 | 49 | 3690 |
3×70+2×35/2+12×LWL | 51 | 55 | 4800 |
3×95+2×50/2+12×LWL | 55 | 59 | 5620 |
3×120+2×70/2+12×LWL | 59 | 63 | 6740 |
3×150+2×70/2+12×LWL | 64 | 68 | 8040 |
3×185+2×95/2+12×LWL | 68 | 72 | 9380 |
12/20 kV
Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
No.×mm² | mm | mm | kg/km |
3×25+2×25/2+12×LWL | 46 | 49 | 3050 |
3×35+2×25/2+12×LWL | 49 | 52 | 3490 |
3×50+2×25/2+12×LWL | 53 | 57 | 4340 |
3×70+2×35/2+12×LWL | 57 | 61 | 5320 |
3×95+2×50/2+12×LWL | 61 | 65 | 6360 |
3×120+2×70/2+12×LWL | 67 | 71 | 7810 |
3×150+2×70/2+12×LWL | 70 | 74 | 8900 |
3×185+2×95/2+12×LWL | 76 | 80 | 10700 |
18/30 kV
Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
No.×mm² | mm | mm | kg/km |
3×25+2×25/2+12×LWL | 55 | 59 | 3960 |
3×35+2×25/2+12×LWL | 58 | 62 | 4550 |
3×50+2×25/2+12×LWL | 63 | 67 | 5510 |
3×70+2×35/2+12×LWL | 66 | 70 | 6560 |
3×95+2×50/2+12×LWL | 71 | 75 | 7850 |
3×120+2×70/2+12×LWL | 76 | 80 | 10690 |
3×185+2×95/2+12×LWL | 86 | 90 | 12550 |
