Armoured Cat 6 S/FTP 23AWG IEC60092
 |
| Quantity: | |
|---|---|
Armoured Cat 6 S/FTP 23AWG IEC60092
| Application | These Cat6 S/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz. |
| Standards | EN 50288 ISO 11801 IEC 61156-5 IEC 60332-1 IEC 60754-1/2 IEC 61034 |

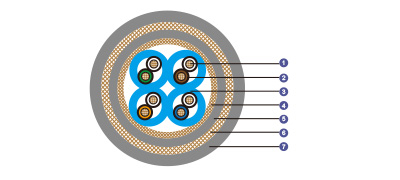

| Construction | |
| Conductors | Solid bare copper conductor. |
| Insulation | PE. |
| Twinning | Two coloured insulated conductors twisted together to form a pair. |
| Individual Screen | Al/polyester tape. |
| Overall Screen | Tinned copper braid. |
| Inner Sheath | LSOH. |
| Armour | Tinned copper braid. |
| Outer Sheath | LSOH (SHF1). |
| Core Identification | Pair 1: White, Blue Pair 2: White, Orange Pair 3: White, Green Pair 4: White, Brown |
Electrical Properties
Maximum DC Loop Resistance | Ω/km | 165 |
Maximum Resistance Unbalance | 2% | |
Minimum Insulation Resistance | MΩ.km | 1000 |
Nominal Capacitance @800Hz | nF/km | 43 |
Maximum Capacitance Unbalance (pair to ground) | pF/km | 1500 |
Characteristic Impedance @1-100MHz | Ω | 100 ± 15 |
Nominal Velocity of Propagation | 79% | |
Maximum Propagation Delay | ns/100 m | 427 |
Maximum Delay Skew | ns/100 m | 12 |
Maximum Transfer Impedance @1MHz | mΩ /m | 5 |
Maximum Transfer Impedance @10MHz | mΩ /m | 10 |
Maximum Transfer Impedance @30MHz | mΩ /m | 30 |
Maximum Transfer Impedance @100MHz | mΩ /m | 100 |
Nominal Transmission Characteristics @20℃
F | Attenuation | NEXT | PS-NEXT | ACR | PS-ACR | ELFEXT | PS-ELFEXT | Return Loss |
MHz | dB/100m | dB | dB | dB/100m | dB/100m | dB/100m | dB/100m | dB |
1 | 2.0 | 90 | 87 | 88 | 85 | 85 | 82 | |
4 | 3.6 | 90 | 87 | 86 | 83 | 85 | 82 | 27 |
10 | 5.7 | 90 | 87 | 84 | 81 | 79 | 76 | 30 |
16 | 7.2 | 90 | 87 | 83 | 80 | 75 | 72 | 30 |
20 | 8.1 | 90 | 87 | 82 | 79 | 73 | 70 | 30 |
31.25 | 10.2 | 90 | 87 | 80 | 77 | 69 | 66 | 30 |
62.50 | 14.7 | 90 | 87 | 75 | 72 | 63 | 60 | 30 |
100 | 18.9 | 90 | 87 | 71 | 68 | 59 | 56 | 30 |
155 | 24.0 | 88 | 85 | 64 | 61 | 55 | 52 | 26 |
200 | 27.0 | 88 | 85 | 61 | 58 | 53 | 50 | 25 |
250 | 31.4 | 86 | 83 | 55 | 52 | 51 | 48 | 25 |
300 | 34.8 | 86 | 83 | 51 | 48 | 49 | 46 | 23 |
400 | 38.1 | 86 | 83 | 48 | 45 | 44 | 41 | 23 |
Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -20℃ ~ +60℃
Dimensions and Weight
Part No. | Construction No. of elements×No. of cores in element×Cross section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km | |
Inner | Outer | |||||
UE092-S/FTPCAT6A4P23 | 4×2×23AWG | 0.578 | 0.60 | 1.09 | 10.78 | 188 |
