150/250V HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair)
 |
| Quantity: | |
|---|---|
150/250V HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair)
| Application | These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels. |
| Standards | DIN 89159/98 IEC 60092-351/375/359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

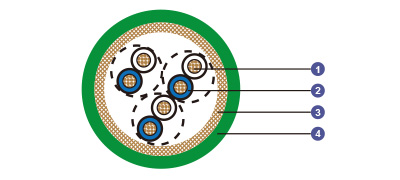

| Construction | |
| Conductors | Stranded copper conductor. |
| Insulation | HEPR. |
| Cabling Element | Pair. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). |
| Core Identification | Pair: white/ blue with printed pair number and core number. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD Temperature Range: -30℃ ~ +75℃ |
Dimensions and Weight
Part No. | Construction No. of elements×No. of cores in element×Cross section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
M092-RE-3GCH-1P0.75 | 1×2×0.75 | 0.5 | 1.2 | 8.5 | 90 |
M092-RE-3GCH-2P0.75 | 2×2×0.75* | 0.5 | 1.3 | 9.5 | 130 |
M092-RE-3GCH-4P0.75 | 4×2×0.75 | 0.5 | 1.4 | 13.0 | 230 |
M092-RE-3GCH-7P0.75 | 7×2×0.75 | 0.5 | 1.8 | 15.5 | 340 |
M092-RE-3GCH-10P0.75 | 10×2×0.75 | 0.5 | 1.9 | 18.5 | 470 |
M092-RE-3GCH-14P0.75 | 14×2×0.75 | 0.5 | 2.0 | 21.0 | 610 |
M092-RE-3GCH-19P0.75 | 19×2×0.75 | 0.5 | 2.1 | 23.5 | 770 |
M092-RE-3GCH-24P0.75 | 24×2×0.75 | 0.5 | 2.2 | 26.5 | 950 |
*: 2 pairs are assembled as a quad.
